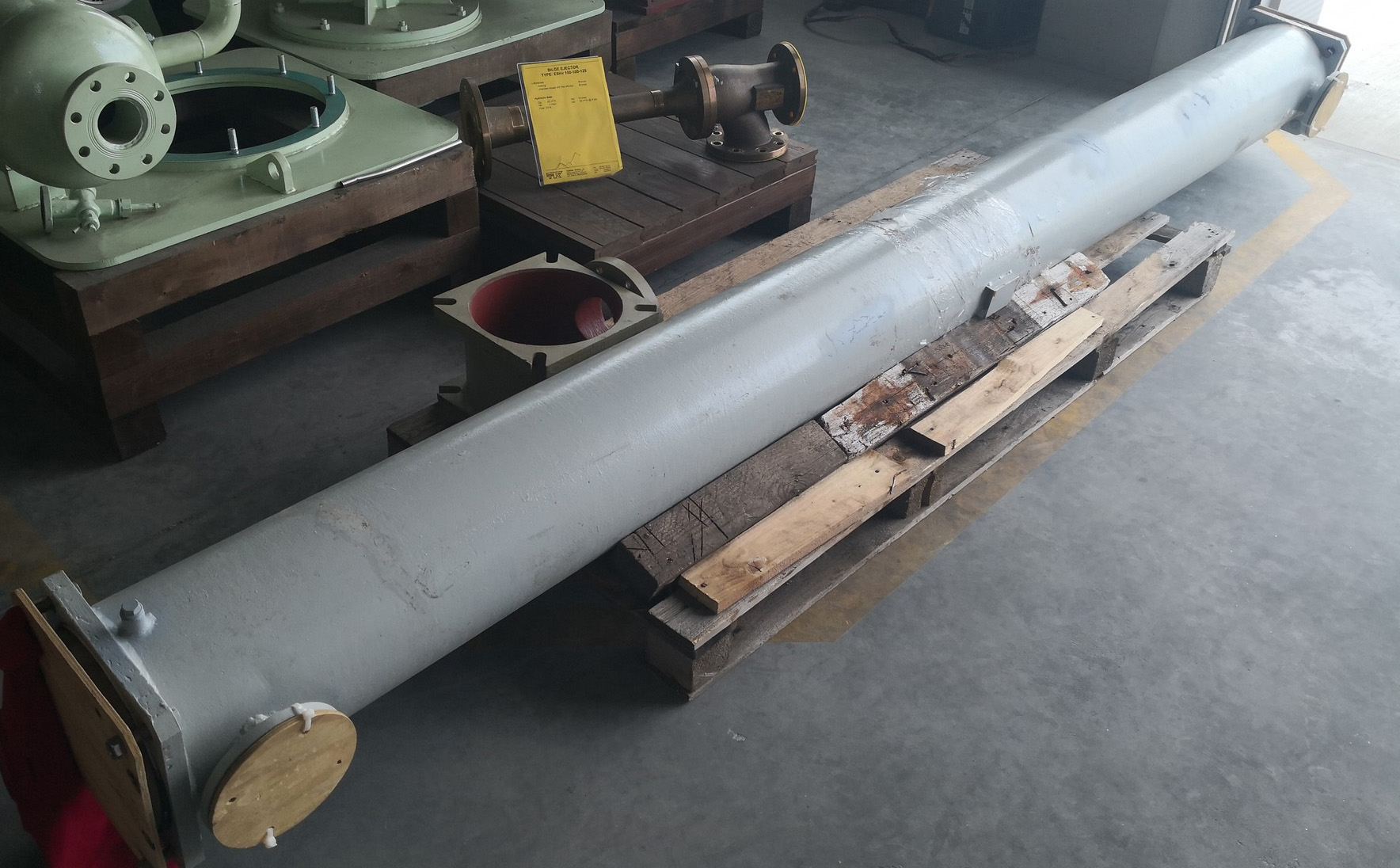

HEAT EXCHANGER

Materials:
Mantle: Carbon steel painted in RAL 1013

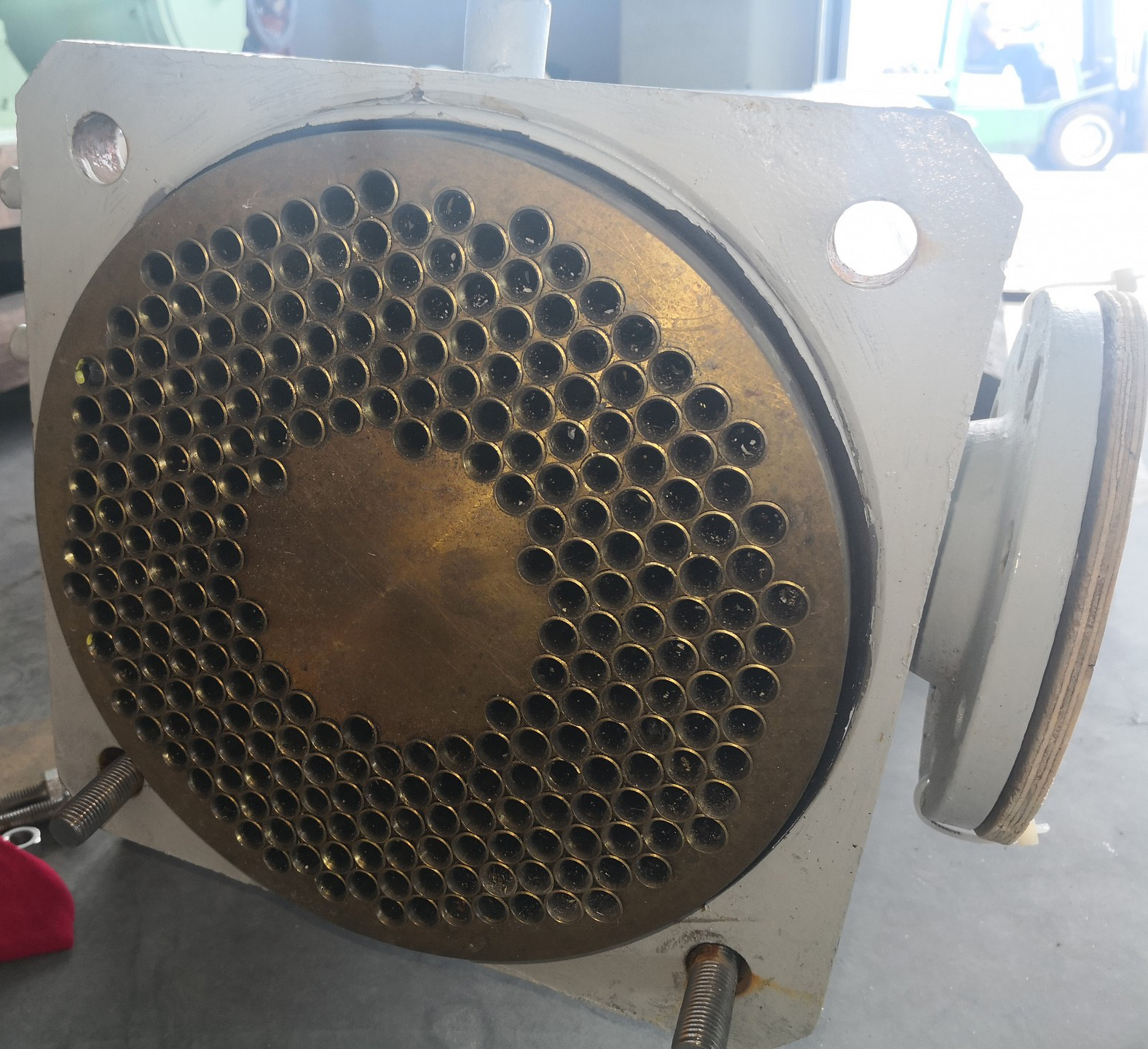

Tubes: CuZn20Al2, F39
Tube walls: CuZn37
Partition sheets: CuZn37

Medium in pipes: Sea water
Max. operating pressure: 3 bar
Max. temperature: 45°C
Capacity: 79 liters

Medium in mantle: Fresh water
Max. operating pressure: 4 bar
Max. temperature: 82°C
Capacity: 152 liters

Dimensions:
Length: 3815 mm
