FUEL / CHEMICALS LINE SAMPLER


Fuel line sampler is used for taking samples
of fuel or chemicals from pipelinelines in a
quick and safe manner.

The product range covers wide range of
pipeline / flange sizes.

Each sampler consists of:

- stainless steel sampler body
- stainless steel needle valve
- stainless steel securing cap
- security pin and lock

Optionally cubitainers of 5 and 10 L with
caps can be delivered with samplers or
separately.

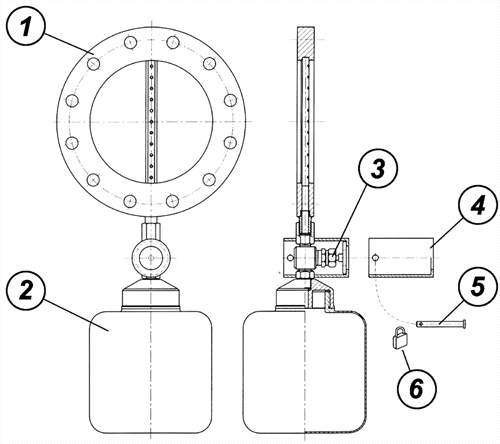

DIMENSIONS

·






Item
Description
1
 Sampler body
2
 5/10 l reservoir*
3
 Needle valve
4
 Securing cap
5
 Securing needle
6
 Lock
* Optional!



STANDARD SIZES*
FLANGE SIZE
FLANGE SIZE
FLANGE SIZE
DN 50
2"
DN 125
5"
DN 250
10"
DN 65
2 1/2"
DN 150
6"
DN 300
12"
DN 80
3"
DN 175
7"
DN 350
14"
DN 100
4"
DN 200
8"
DN 400
16"

* We can also manufacture samplers according to your specifications!
