VCP

VERTICAL CENTRIFUGAL LUBE OIL PUMPS


VCP pumps are vertical centrifugal pumps designed for circulation of oil up to 100 °C through large engines used in ships or stationary installations – power plants.
Standard capacities of VCP pumps range from 10 to 350 m3/h and delivery heights from 55 to 45 m, however we pumps with other characteristics are in development.

VCP pumps are designed for mounting on oil tank where impeller part is submerged into the oil. Pump submerged parts can be delivered in different lenghts to accomodate site conditions.

STANDARD MATERIALS

  • Pump casing: Cast iron
  • Impeller: Cast iron, Bronze, Stainless steel
  • Shaft: Stainless steel


VCP pumps have very simple shaft sealing mechanism
without necessity for mechanical seal or packing rings, thus reducing maintenance and maintenance cost.





SHAFT SEALING & BEARINGS

Shaft is supported by upper ball bearings and lower slide bearings VCP lubricated by working oil. Depending on lenght intermediate bearings can be installed.

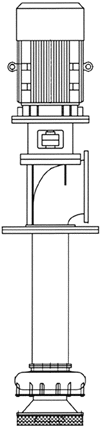

VCP – DIMENSION

-

VCP – CROSSECTION

VCP 35-20 VCP 35-25
A 485 485
L 260 260
*H 3150 2826
*H1 1650 1656
*H2 1400 1400
H3 250 255
H4 380 395
H5 270 270
Hm 900 770
I 40 40
J 50 50
K 90 90
VCP 35-20 VCP 35-25
X 200 200
Y 350 350
DELIVERY FLANGE
ND 200 250
BCL >295 >335
OD 340 375
n x d 12 x 22 12 x 18
TANK FIXING FLANGE
BCL 620 620
OD 670 670
n x d 16 x M16 20 x 27

* Heights can vary to suit site conditions
