FUEL / CHEMICALS LINE SAMPLER

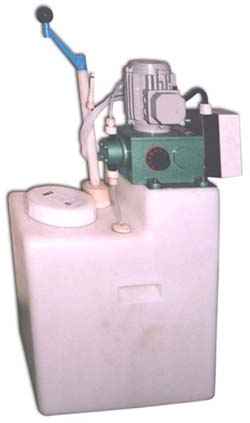

Dosing units M205, M210 can be applied for precise dosing of various kinds of industrial liquids, without any solid particles in process industry, on ships, boiler rooms, waterworks, water purification plants etc. All parts of the pump that are in contact with working medium are at working temperature resistant to many aggresive mediums such as: - 50% sulphuric acid - 37% hydrochloric acid - hydrazine hydrate - 15% sodium hypochlorite - 40% sodium hydroxide TECHNICAL SPECIFICATION PUMP M205 M210 Capacity 0-5 l/h 0-10 l/h Delivery height 10 bar Suction lift 1.1 m ELECTRIC MOTOR Power supply 220 / 440 V, 50 / 60 Hz Installed power 90 W Rated current 0.48 / 0.24 A Speed 3410 RPM Protection IP 56 RESERVOIR Dimensions 300 x 450 x 520 mm Tank volume 50 l Weight empty 11 kg Note: For different specification requirements email us!

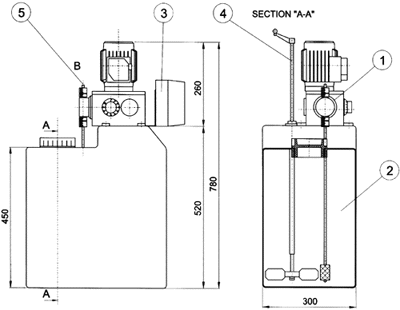

DIMENSIONS
	Item Description 1 Dosing pump 2 Reservoir 3 Switch box 4 Hand Mixer* 5 Dosin pump outlet * Optional!
